Designed as an alternative to the traditional coach screw mainly used for timber to timber applications. Wafer head for improved clamping and a low profile finish. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak.
Timber Frame Screw WAFER A2 SS

Timber Frame Screw WAFER A2 SS - 8.0 x 125 (Tube 20)

SKU: 125INDEXWSST
£28.04 inc. VAT
£33.90 Sale £28.04 inc. VAT
Description

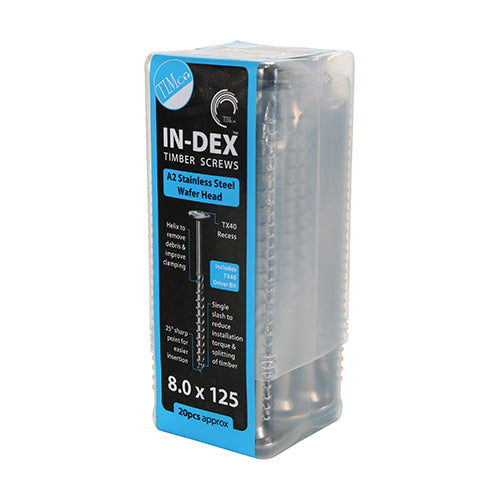

TIMCO Wafer Head A2 Stainless Steel Timber Screws - 8.0 x 125

Designed as an alternative to the traditional coach screw mainly used for timber to timber applications. Wafer head for improved clamping and a low profile finish. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak.

Wafer head countersunk and TX40 recess

Stainless Steel offers superior corrosion resistance, perfect for highly corrosive environments

Helix shank for removing debris and to improve clamping

Single slash point to reduce torque and the risk of timber splitting at low edge distance

25 ° sharp point and single lead for a fast start and improved thread acceptance

Pack Quantity 20
Size mm 8.0 x 125
Driver Bit Size TX40
Substrates Hardwood, Softwood, Corrosive Wood (e.g. Oak, Cedar)
Pack Quantity Unit Pieces
Description Designed as an alternative to the traditional coach screw mainly used for timber to timber applications. Wafer head for improved clamping and a low profile finish. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak.
Shank Type Helix
Colour Silver
Material Austenitic Stainless Steel (A2-304)
Included Items TX40 S2 Bit (Qty 1)
Point Type 25 ° Sharp with Single Slash
Thread Type Serrated
Product Code 125INDEXWSST
Recess Type TX Drive
Head Type Wafer
Pack Type Tube
SKU Barcode 5056110836294
Thread Dia. mm 8
Corrosion Rating 4 - Urban & industrial areas with a moderate salt atmosphere
CE Standard Web BS EN 14592:2008
Length mm 125
Thread Length mm 70
Inner Thread Dia. mm 5.6
Fixed Washer Dia. mm 21
Head Dia. mm 20.84
Carton Qty Packs 33
Carton Qty pcs 660
Pack Dimensions L x W x H mm 58 x 58 x 138
Pack Weight kg 0.682
Thread Coverage Partially Threaded
