Timber Frame Screw WAFER Green - 8.0 x 200 (Box 50)

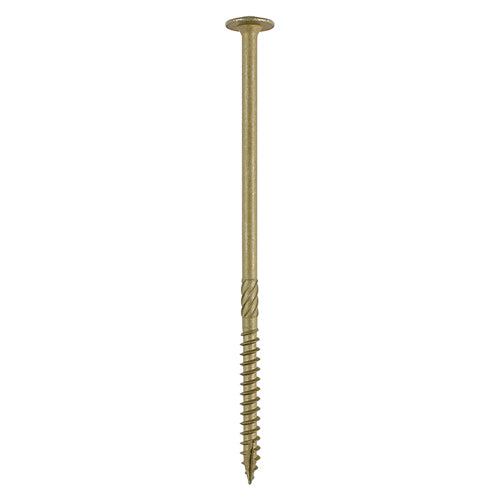

TIMCO Wafer Head Exterior Green Timber Screws - 8.0 x 200
Designed as an alternative to the traditional coach screw mainly used for timber to timber applications. Wafer head for improved clamping and a low profile finish. Coated with a patented multi-layer corrosion resistant plating to withstand 1,000 hours salt spray test, this screw is ideal for external applications.
Wafer head countersunk and TX40 recess
Long lasting plating withstands up to 1,000 hours salt spray resistance in accordance to BS EN 9227:2012
Patented lubrication, designed to enhance screw insertion time and provides greater resistance to corrosion
Helix shank for removing debris and to improve clamping
50 ° deep single thread to provide a secure fixing with high pull-out resistance
Single slash point to reduce torque and the risk of timber splitting at low edge distance
| Pack Type | Box |
| Description | Designed as an alternative to the traditional coach screw mainly used for timber to timber applications. Wafer head for improved clamping and a low profile finish. Coated with a patented multi-layer corrosion resistant plating to withstand 1,000 hours salt spray test, this screw is ideal for external applications. |
| Product Code | 200INW |
| Pack Quantity | 50 |
| Driver Bit Type | TX Drive |
| SKU Barcode | 5055331860934 |
| Pack Quantity Unit | Pieces |
| Recess Type | TX Drive |
| Colour | Olive Green |
| Finish | Exterior (Green Organic) |
| Corrosion Rating | 3 - Urban & industrial areas with a low salt atmosphere |
| Material | Carbon Steel |
| Shank Type | Helix |
| Thread Type | 50 ° Single Deep |
| Point Type | 25 ° Sharp with Single Slash |
| Size mm | 8.0 x 200 |
| Driver Bit Size | TX40 |
| Length mm | 200 |
| Thread Length mm | 70 |
| Head Type | Wafer |
| CE Standard Web | BS EN 14592:2008 |
| Thread Dia. mm | 8 |
| Lubrication | Wax |
| Carton Qty pcs | 400 |
| Carton Qty Packs | 8 |
| Substrates | Hardwood, Softwood |
| Included Items | TX40 S2 Bit (Qty 1) |
| Inner Thread Dia. mm | 5.6 |
| Fixed Washer Dia. mm | 21 |
| Head Dia. mm | 20.84 |
| Pack Dimensions L x W x H mm | 230 x 90 x 90 |
| Pack Weight kg | 2.38 |
| Application | Framing, Landscaping, Decking, Fencing, Stairs, Roofing, Gazebos, Pergolas, Sleepers |
| Thread Coverage | Partially Threaded |
