Cranked Ball Race Hinge PC - 64 x 55 (Box 2)
Regular price
£12.51
inc. VAT
Regular price
£15.26
Sale
Sale price
£12.51
inc. VAT

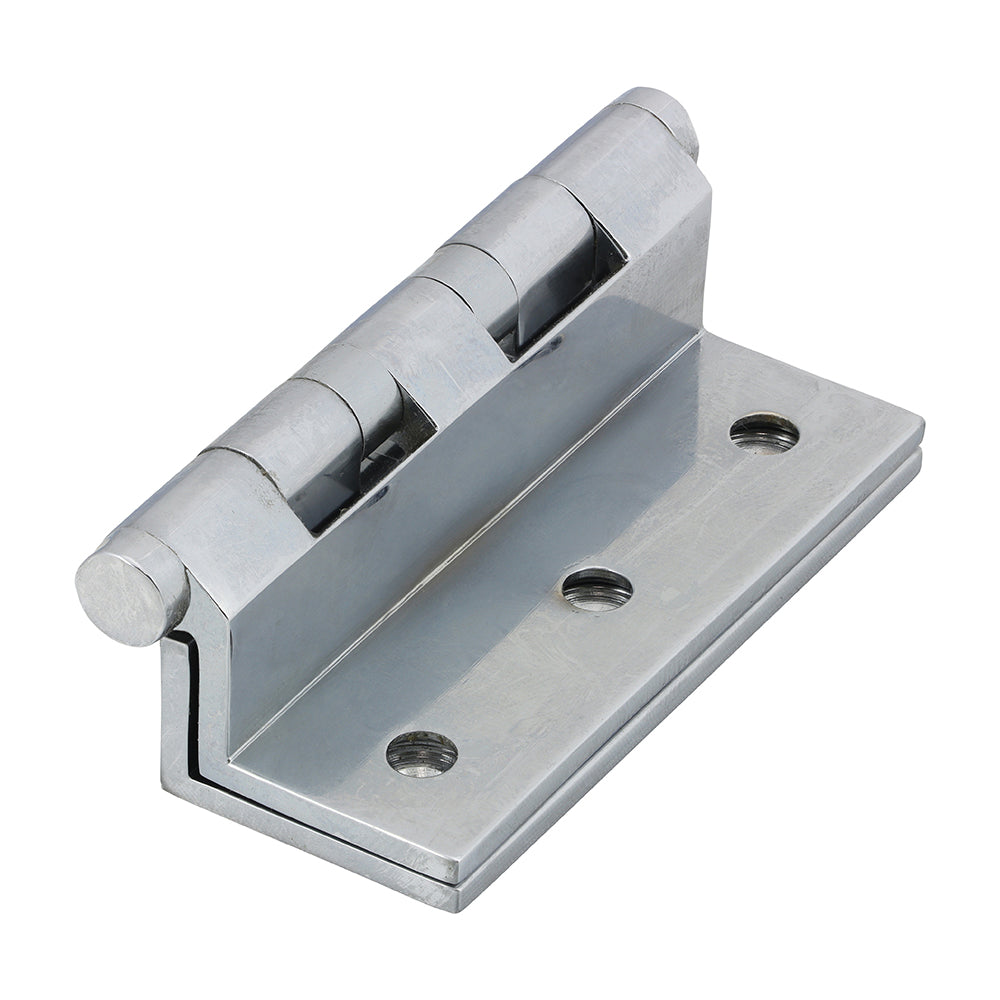

TIMCO Cranked Ball Race Brass Hinges Polished Chrome - 64 x 55
These cranked hinges are manufactured from high quality extruded brass and brass pins to guarantee a rust free long lasting finish. They are ideal for high quality rebated casement door and window projects. The ball bearing raced knuckles prevent knuckle wear and will provide a lifetime of silent and smooth operation. fixings included.
| Knuckle Dia. mm | 8 |
| Corner Type | Square |
| Screw Size imp. | 8 x 1 |
| Max Door Weight kg | 40 |
| Pack Quantity Unit | Pieces |
| Length inch | 2 |
| Thickness mm | 2.5 |
| Finish | Polished Chrome |
| Pack Type | Box |
| Size L x W mm | 64 x 55 |
| Rec Screw Dia. mm | 4 |
| Description | These cranked hinges are manufactured from high quality extruded brass and brass pins to guarantee a rust free long lasting finish. They are ideal for high quality rebated casement door and window projects. The ball bearing raced knuckles prevent knuckle wear and will provide a lifetime of silent and smooth operation. fixings included. |
| Pack Quantity | 2 |
| Pin Material | Brass |
| Material | Solid Brass |
| Hole Dia. mm | 5.1 |
| Screw Size mm | 4.0 x 25 |
| Product Code | 234236 |
| Length mm | 64 |
| SKU Barcode | 5056110823768 |
| Rec Screw Gauge imp. | 8 |
| Open Width mm | 55 |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| No. of CSK Screws | 12 |
| Knuckle Type | Ball Bearing |
| Screws Required Per Pair | 12 |
| Pack Dimensions L x W x H mm | 122 x 56 x 28 |
| Carton Qty Packs | 80 |
| Carton Qty pcs | 80 pairs |
| Pack Weight kg | 0.26 |
