Slide action padbolts are ideal for securing flush fitting gates and doors in domestic and light commercial applications when the bolt is exposed externally. They are pad-lockable and fixed with eight carriage bolts to prevent the bolt being wrenched from the door. Fixings included.

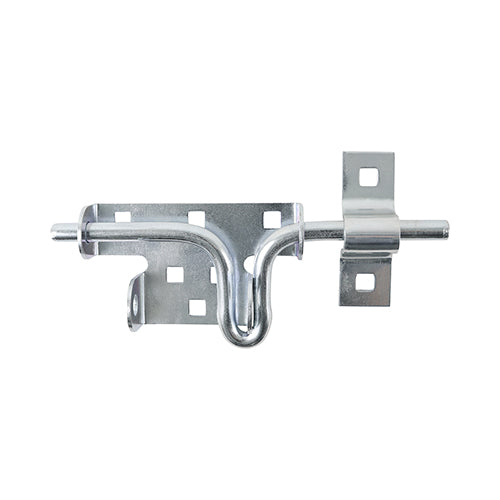

Slide Action Padbolt Zinc

Slide Action Padbolt Zinc - 7 5/16" (TIMbag 1)

SKU: 287585
£7.70 inc. VAT
£9.39 Sale £7.70 inc. VAT
Description

TIMCO Slide Action Padbolt Silver - 7.2"

Slide action padbolts are ideal for securing flush fitting gates and doors in domestic and light commercial applications when the bolt is exposed externally. They are pad-lockable and fixed with eight carriage bolts to prevent the bolt being wrenched from the door. Fixings included.

SKU Barcode 5055893395042
Pack Quantity Unit Each
Pack Quantity 1
Pack Type TIMbag
Product Code 287585
Description Slide action padbolts are ideal for securing flush fitting gates and doors in domestic and light commercial applications when the bolt is exposed externally. They are pad-lockable and fixed with eight carriage bolts to prevent the bolt being wrenched from the door. Fixings included.
Bolt Throw mm 60
Staple Keep Size L x W mm 76 x 25
Bolt Length inch 7
Carriage Bolt Size mm M6 x 50
Material Carbon Steel
Max Padlock Shackle Diameter mm 8
Corrosion Rating 2 - Occasionally damp/wet, rural and sheltered areas
Finish Zinc
Plate Size L x W mm 105 x 72
Bolt Dia. mm 9
No. of Bolt Holes 8
Bolt Length mm 185
No. of Carriage Bolts 8
To Fit Carriage Bolt Dia. mm M6
Carton Qty pcs 10
Carton Qty Packs 10
Nut Type Hex Full
Washer Size mm M6
No. of Nuts 8
Nut Size mm M6
Washer Type Form A
No. of Washers 8
Included Items M6 x 50mm Carriage Bolts (Qty 8) ?M6 Hex Full Nuts (Qty 8) ?M6 Form A Washers (Qty 8)
Pack Dimensions L x W x H mm 20 x 160 x 290
Pack Weight kg 0.42
