Hurlinges enable quick door fitting as they require no morticing into the door or frame. They feature lugs on the knuckle for quick and simple lining up. The hinge features a removable pin to enable quick door hanging and removal at a later date.
Hurlinge Loose Pin P/Chrome

Hurlinge Loose Pin P/Chrome - 100 x 66 (Plain Bag 2)

SKU: 434258
£3.09 inc. VAT
£3.91 Sale £3.09 inc. VAT
Description

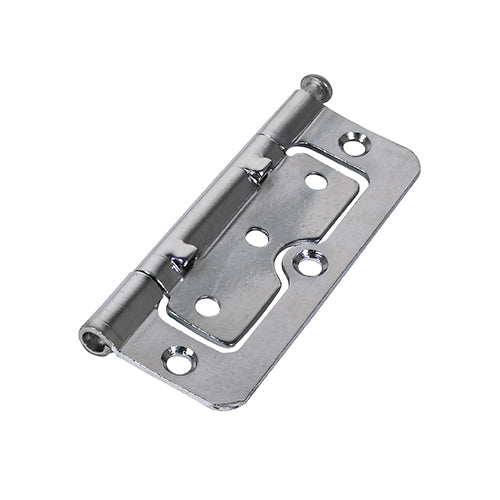

TIMCO Hurlinge Hinges Loose Pin (104Z) Steel Polished Chrome - 100 x 66

Hurlinges enable quick door fitting as they require no morticing into the door or frame. They feature lugs on the knuckle for quick and simple lining up. The hinge features a removable pin to enable quick door hanging and removal at a later date.

Ideal for internal doors

Quick fitting - no morticing required

Lugs on the knuckle for quick lining up

Removable pin for quick door hanging

Pack Quantity 2
Corner Type Radius
Max Door Weight kg 30
Product Code 434258
Description Hurlinges enable quick door fitting as they require no morticing into the door or frame. They feature lugs on the knuckle for quick and simple lining up. The hinge features a removable pin to enable quick door hanging and removal at a later date.
Length inch 4
Thickness mm 2
Screws Required Per Pair 12
Pack Quantity Unit Pieces
Knuckle Dia. mm 9
Length mm 100
Material Steel
Hole Dia. mm 5.8
Open Width mm 66
Corrosion Rating 2 - Occasionally damp/wet, rural and sheltered areas
Finish Polished Chrome
Pack Type Plain Bag
Pattern 104Z
SKU Barcode 5056110808895
Carton Qty pcs 60 pairs
Carton Qty Packs 60
Rec Screw Dia. mm 4
Size L x W mm 100 x 66
L1 x W1 mm 100 x 39
L2 x W2 mm 66 x 27
Rec Screw Gauge imp. 8
Knuckle Type Plain
Pack Dimensions L x W x H mm 170 x 92 x 10
Pack Weight kg 0.19
