Hurlinges enable quick door fitting as they require no morticing into the door or frame. They feature lugs on the knuckle for quick and simple lining up. The hinge features a removable pin to enable quick door hanging and removal at a later date.

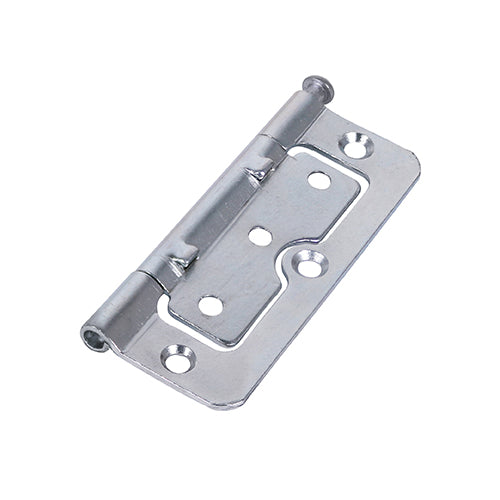

Hurlinge Loose Pin Zinc

Hurlinge Loose Pin Zinc - 100 x 66 (Plain Bag 2)

SKU: 434432
£2.68 inc. VAT
£3.29 Sale £2.68 inc. VAT
Description

TIMCO Hurlinge Hinges Loose Pin (104Z) Steel Silver - 100 x 66

Hurlinges enable quick door fitting as they require no morticing into the door or frame. They feature lugs on the knuckle for quick and simple lining up. The hinge features a removable pin to enable quick door hanging and removal at a later date.

Ideal for internal doors

Quick fitting - no morticing required

Lugs on the knuckle for quick lining up

Removable pin for quick door hanging

Knuckle Dia. mm 9
Length mm 100
Pattern 104Z
Screws Required Per Pair 12
Pack Quantity Unit Pieces
Corrosion Rating 2 - Occasionally damp/wet, rural and sheltered areas
Length inch 4
Thickness mm 2
Finish Zinc
Open Width mm 66
Corner Type Radius
Pack Type Plain Bag
SKU Barcode 5056110808857
Description Hurlinges enable quick door fitting as they require no morticing into the door or frame. They feature lugs on the knuckle for quick and simple lining up. The hinge features a removable pin to enable quick door hanging and removal at a later date.
Pack Quantity 2
Max Door Weight kg 30
Material Steel
Hole Dia. mm 5.8
Product Code 434432
Carton Qty pcs 60 pairs
Carton Qty Packs 60
Rec Screw Gauge imp. 8
Size L x W mm 100 x 66
L1 x W1 mm 100 x 39
L2 x W2 mm 66 x 27
Rec Screw Dia. mm 4
Knuckle Type Plain
Pack Dimensions L x W x H mm 170 x 92 x 10
Pack Weight kg 0.2
