Butt Hinge Loose Pin White - 75 x 50 (Plain Bag 2)
Regular price
£1.30
inc. VAT
Regular price
£1.79
Sale
Sale price
£1.30
inc. VAT

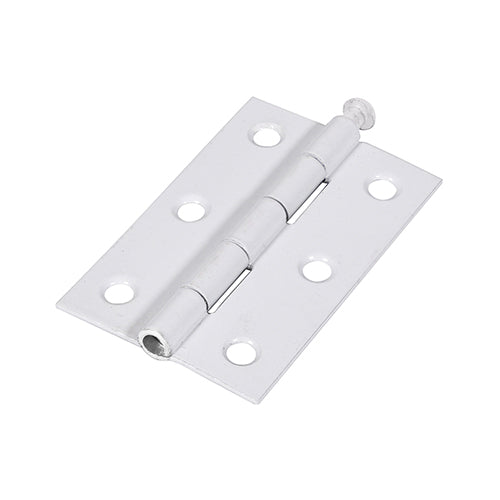

TIMCO Butt Hinges Loose Pin (1840) Steel White - 75 x 50
Cranked steel butt hinges with a loose pin that are ideal for use on light duty internal applications. The hinge features a removable pin to enable quick door hanging and removal at a later date.
Standard butt hinge designed for internal doors
Removal pin for quick door hanging
| Pack Type | Plain Bag |
| Pattern | 1840 |
| SKU Barcode | 5056110808758 |
| Finish | Epoxy White |
| Max Door Weight kg | 20 |
| Material | Steel |
| Open Width mm | 50 |
| Screws Required Per Pair | 12 |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Pack Quantity | 2 |
| Length inch | 3 |
| Thickness mm | 1.5 |
| Hole Dia. mm | 5.7 |
| Product Code | 434720 |
| Knuckle Dia. mm | 7.2 |
| Length mm | 75 |
| Corner Type | Square |
| Pack Quantity Unit | Pieces |
| Description | Cranked steel butt hinges with a loose pin that are ideal for use on light duty internal applications. The hinge features a removable pin to enable quick door hanging and removal at a later date. |
| Carton Qty pcs | 90 pairs |
| Carton Qty Packs | 90 |
| Rec Screw Dia. mm | 4 |
| Rec Screw Gauge imp. | 8 |
| Size L x W mm | 75 x 50 |
| Knuckle Type | Plain |
| Pack Weight kg | 0.12 |
| Pack Dimensions L x W x H mm | 170 x 92 x 10 |
