Classic Screw PZ2 PAN A2 SS - 5.0 x 25 (Box 200)
Regular price
£15.32
inc. VAT
Regular price
£18.40
Sale
Sale price
£15.32
inc. VAT

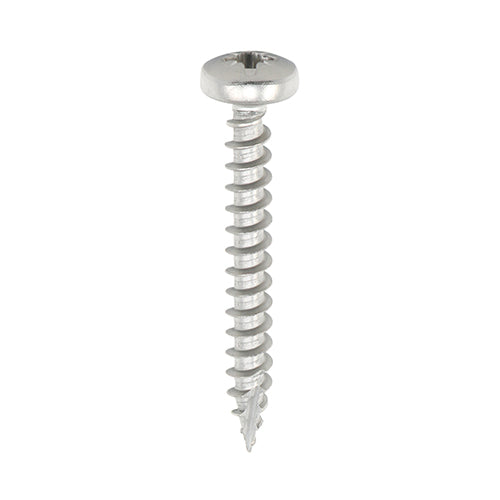

TIMCO Classic Multi-Purpose Pan Head A2 Stainless Steel Woodcrews - 5.0 x 25
All the features and superior performance of the Classic Multi-Purpose Screw. Manufactured from A2 Stainless Steel. Ideal where ultimate corrosion resistance is required when fixing to softwoods, hardwood (pre-drilled), chipboard, MDF and plastic. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak.
Pan head for improved clamping
40 ° deep single thread to provide a secure fixing with high pull-out resistance
Single slash point to reduce torque and the risk of timber splitting at low edge distance
All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
| Recess Type | Pozi |
| Head Type | Pan |
| Pack Type | Box |
| Thread Length mm | 25 |
| CE Standard Web | BS EN 14592:2008 |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Description | All the features and superior performance of the Classic Multi-Purpose Screw. Manufactured from A2 Stainless Steel. Ideal where ultimate corrosion resistance is required when fixing to softwoods, hardwood (pre-drilled), chipboard, MDF and plastic. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak. |
| Pack Quantity | 200 |
| Length mm | 25 |
| Length inch | 1 |
| SKU Barcode | 5056110816975 |
| Pack Quantity Unit | Pieces |
| Driver Bit Size | PZ2 |
| Point Type | 25 ° Sharp with Single Slash |
| Material | Austenitic Stainless Steel (A2-304) |
| Thread Type | Single Coarse 40 ° |
| Carton Qty pcs | 4400 |
| Size mm | 5.0 x 25 |
| Gauge | 10 |
| Size imp. | 10 x 1 |
| Substrates | Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal, Corrosive Wood (e.g. Oak, Cedar) |
| Thread Dia. mm | 5 |
| Product Code | 50025CLAPSS |
| Carton Qty Packs | 22 |
| Head Dia. mm | 9.71 |
| Inner Thread Dia. mm | 3.04 |
| Pack Weight kg | 0.62 |
| Pack Dimensions L x W x H mm | 92 x 72 x 58 |
| Thread Coverage | Fully Threaded |
