All the features and superior performance of the Classic Multi-Purpose Screw. Manufactured from A2 Stainless Steel. Ideal where ultimate corrosion resistance is required when fixing to softwoods, hardwood (pre-drilled), chipboard, MDF and plastic. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak.
Classic Screw PZ2 PAN A2 SS

Classic Screw PZ2 PAN A2 SS - 5.0 x 50 (Box 200)

SKU: 50050CLAPSS
£26.39 inc. VAT
£31.80 Sale £26.39 inc. VAT
Description

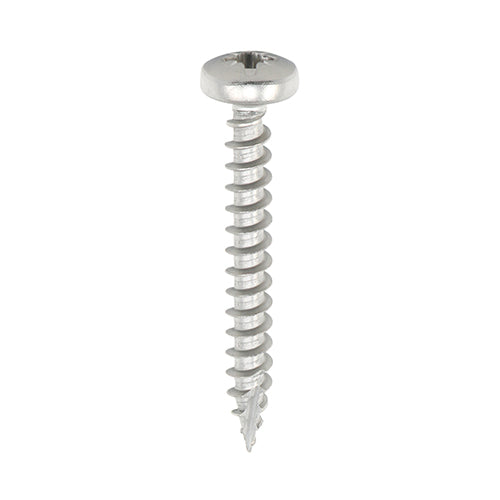

TIMCO Classic Multi-Purpose Pan Head A2 Stainless Steel Woodcrews - 5.0 x 50

All the features and superior performance of the Classic Multi-Purpose Screw. Manufactured from A2 Stainless Steel. Ideal where ultimate corrosion resistance is required when fixing to softwoods, hardwood (pre-drilled), chipboard, MDF and plastic. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak.

Pan head for improved clamping

40 ° deep single thread to provide a secure fixing with high pull-out resistance

Single slash point to reduce torque and the risk of timber splitting at low edge distance

All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length

Point Type 25 ° Sharp with Single Slash
Gauge 10
Length mm 50
Substrates Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal, Corrosive Wood (e.g. Oak, Cedar)
Pack Quantity Unit Pieces
Size mm 5.0 x 50
Driver Bit Size PZ2
Recess Type Pozi
Description All the features and superior performance of the Classic Multi-Purpose Screw. Manufactured from A2 Stainless Steel. Ideal where ultimate corrosion resistance is required when fixing to softwoods, hardwood (pre-drilled), chipboard, MDF and plastic. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak.
Pack Type Box
Thread Type Single Coarse 40 °
Thread Dia. mm 5
CE Standard Web BS EN 14592:2008
SKU Barcode 5056110817002
Size imp. 10 x 2
Corrosion Rating 4 - Urban & industrial areas with a moderate salt atmosphere
Product Code 50050CLAPSS
Carton Qty pcs 3000
Pack Quantity 200
Length inch 2
Head Type Pan
Material Austenitic Stainless Steel (A2-304)
Thread Length mm 50
Carton Qty Packs 15
Head Dia. mm 9.71
Inner Thread Dia. mm 3.04
Pack Weight kg 0.99
Pack Dimensions L x W x H mm 135 x 90 x 60
Thread Coverage Fully Threaded
