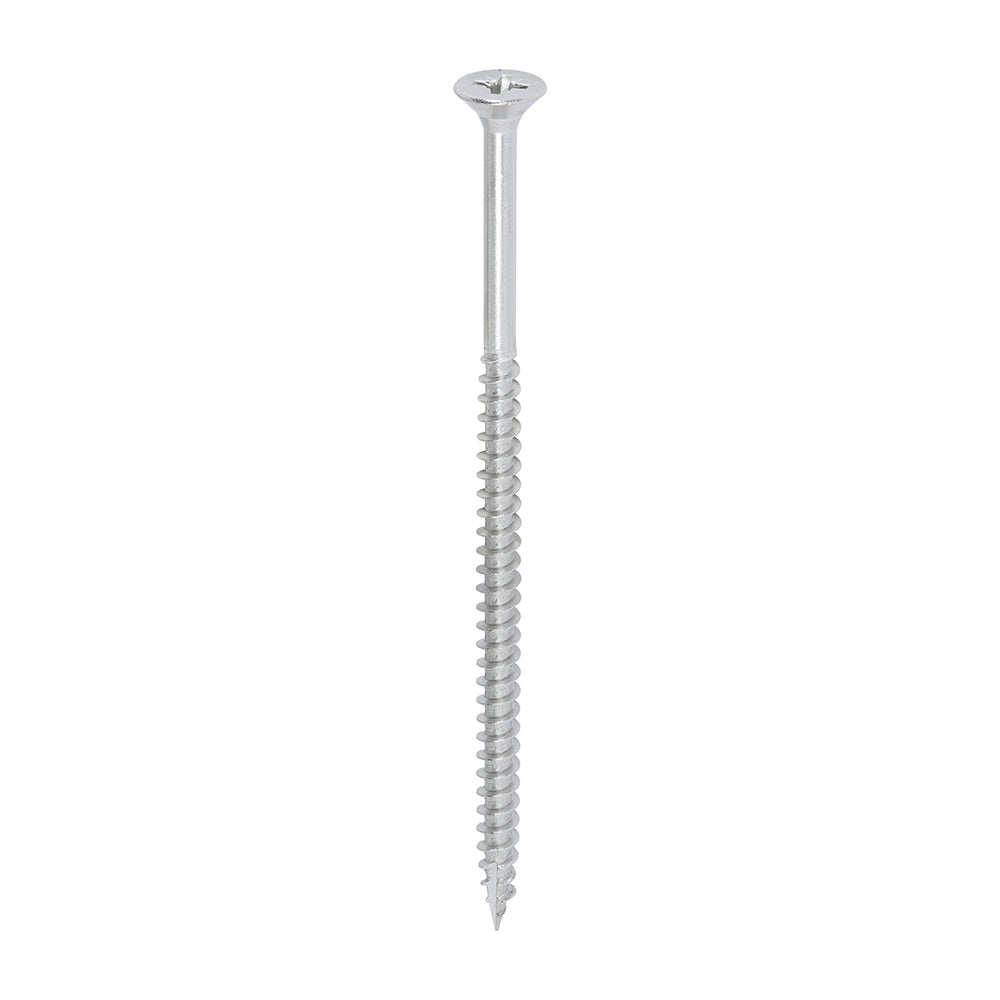

Classic Screw PZ2 CSK A2 SS - 5.0 x 100 (Box 100)
TIMCO Classic Multi-Purpose Countersunk A2 Stainless Steel Woodcrews - 5.0 x 100
All the features and superior performance of the Classic Multi-Purpose Screw manufactured from A2 Stainless Steel. Ideal where ultimate corrosion resistance is required when fixing to softwoods, hardwood (pre-drilled), chipboard, MDF and plastic. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak.
Double countersunk reduces the likelihood of head shear and assists completion of countersinking
40 ° deep single thread to provide a secure fixing with high pull-out resistance
Single slash on 25mm+ to reduce torque and the likelihood of the timber splitting when the screw is inserted close to the edge
All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
| Pack Quantity | 100 |
| Pack Type | Box |
| Product Code | 50100CLASS |
| Description | All the features and superior performance of the Classic Multi-Purpose Screw manufactured from A2 Stainless Steel. Ideal where ultimate corrosion resistance is required when fixing to softwoods, hardwood (pre-drilled), chipboard, MDF and plastic. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak. |
| SKU Barcode | 5055017524273 |
| Pack Quantity Unit | Pieces |
| Recess Type | Pozi |
| Material | Austenitic Stainless Steel (A2-304) |
| Gauge | 10 |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Substrates | Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal, Corrosive Wood (e.g. Oak, Cedar) |
| Size mm | 5.0 x 100 |
| Head Type | Double Countersunk |
| Driver Bit Size | PZ2 |
| Length mm | 100 |
| Thread Length mm | 70 |
| Thread Type | Single Coarse 40 ° |
| Length inch | 4 |
| Point Type | 25 ° Sharp with Single Slash |
| Size imp. | 10 x 4 |
| CE Standard Web | BS EN 14592:2008 |
| Thread Dia. mm | 5 |
| Carton Qty pcs | 1500 |
| Carton Qty Packs | 15 |
| Inner Thread Dia. mm | 3.1 |
| Head Dia. mm | 9.74 |
| Pack Dimensions L x W x H mm | 135 x 90 x 60 |
| Pack Weight kg | 0.84 |
| Thread Coverage | Partially Threaded |
