C2 Clamp-Fix TX30 CSK ZYP - 6.0 x 180 (Box 100)

SKU: 60180C2C
Regular price £30.46 inc. VAT
Regular price £36.60 Sale Sale price £30.46 inc. VAT

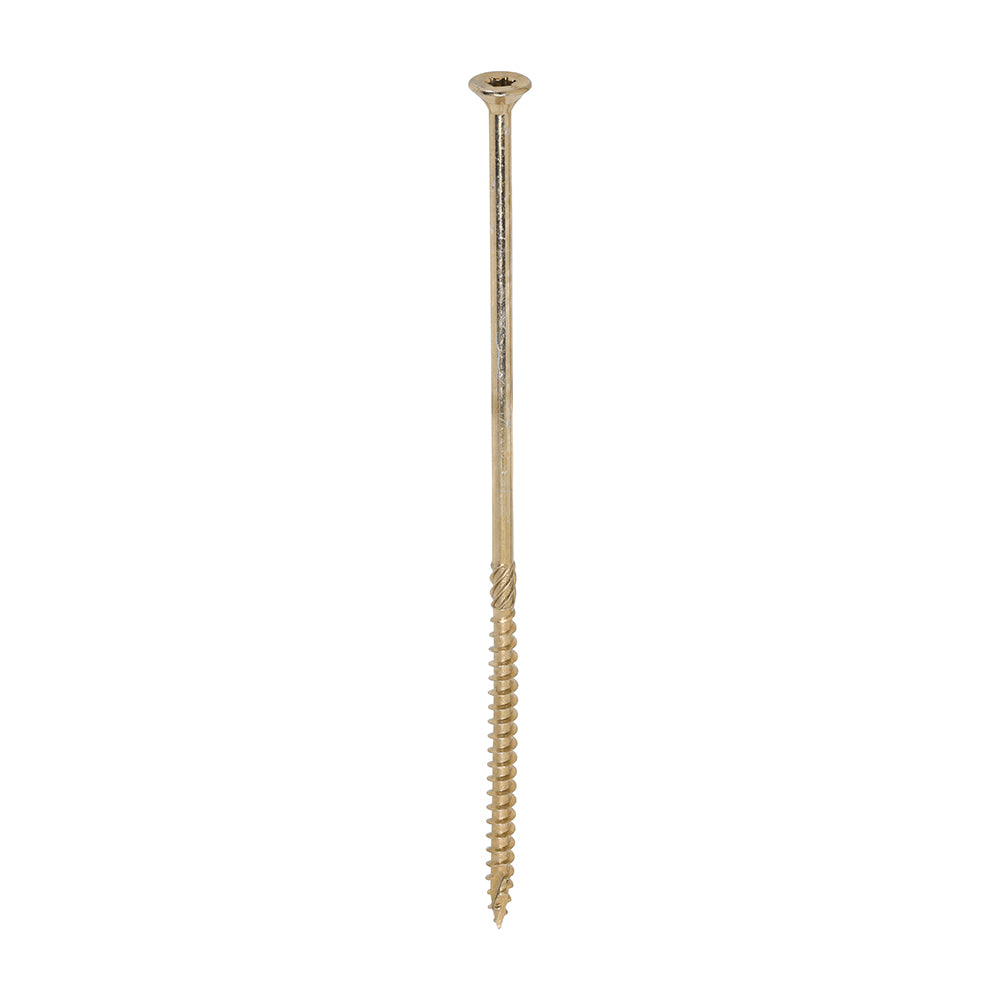

TIMCO C2 Clamp-Fix Multi-Purpose Premium Countersunk Gold Woodscrews - 6.0 x 180

A premium multi-material screw featuring the award winning C2 twin-cut technology. The dual angle partial thread and high torque TX drive ensures maximum clamping strength on every fixing. Designed to prevent the timber from ‘jacking’ apart when fastening timber to timber. Ideal for applications such as timber studwork, panelling, roof and decking framework.

Precision TX drive recess to prevent 'cam-out', giving a precise and positive drive control on every screw

Ribs under head for improved countersinking and to give a smooth and flush finish, also prevents splitting and material damage

Coated with a high-molecular polymer lubricant that reduces the insertion torque by up to 52% and increases rust protection up to 20 times longer than a standard zinc plating

Dual angle thread gives an ultimate performance and an exceptionally high pull-out resistance

Patented twin cut technology for rapid "pick-up" and reduces timber splitting

Partially threaded from 40mm

Pack Quantity 100
Size mm 6.0 x 180
Lubrication Wax
Finish Zinc & Yellow
Pack Type Box
SKU Barcode 5056110824901
Thread Dia. mm 6
Thread Length mm 70
Length mm 180
Carton Qty Packs 8
Carton Qty pcs 800
Length inch 7
Thread Type 40 ° Single
Substrates Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal
Gauge 12
Recess Type TX Drive
Size imp. 12 x 7
Corrosion Rating 2 - Occasionally damp/wet, rural and sheltered areas
Description A premium multi-material screw featuring the award winning C2 twin-cut technology. The dual angle partial thread and high torque TX drive ensures maximum clamping strength on every fixing. Designed to prevent the timber from ‘jacking’ apart when fastening timber to timber. Ideal for applications such as timber studwork, panelling, roof and decking framework.
Driver Bit Size TX30
Point Type Twin-Cut
Head Type Double Countersunk
Material Carbon Steel
Pack Quantity Unit Pieces
Product Code 60180C2C
Shank Type Helix
Inner Thread Dia. mm 3.65
CE Standard Web BS EN 14592:2008
Head Dia. mm 11.65
Pack Weight kg 2.14
Pack Dimensions L x W x H mm 230 x 90 x 90
Max Clamping Fixture Thickness mm 110
Thread Coverage Partially Threaded
