Timber Frame Screw WAFER Green - 6.7 x 75 (Box 50)
TIMCO Wafer Head Exterior Green Timber Screws - 6.7 x 75

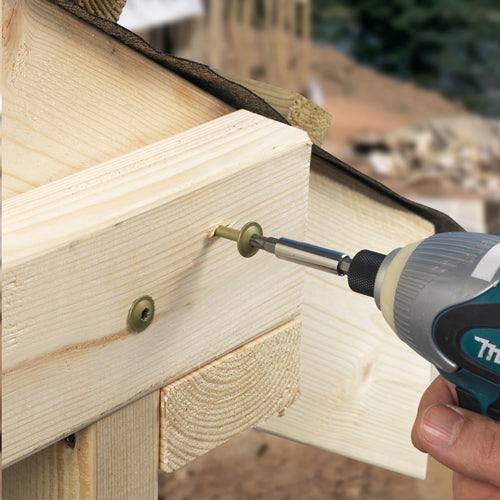

Designed as an alternative to the traditional coach screw mainly used for timber to timber applications. Wafer head for improved clamping and a low profile finish. Coated with a patented multi-layer corrosion resistant plating to withstand 1,000 hours salt spray test, this screw is ideal for external applications.
Wafer head countersunk and TX30 recess
Long lasting plating withstands up to 1,000 hours salt spray resistance in accordance to BS EN 9227:2012
Patented lubrication, designed to enhance screw insertion time and provides greater resistance to corrosion
Helix shank for removing debris and to improve clamping
50 ° deep single thread to provide a secure fixing with high pull-out resistance
Single slash point to reduce torque and the risk of timber splitting at low edge distance
| Shank Type | Helix |
| Point Type | 25 ° Sharp with Single Slash |
| Colour | Olive Green |
| Thread Type | 50 ° Single Deep |
| Substrates | Hardwood, Softwood |
| Product Code | 75INW |
| Driver Bit Type | TX Drive |
| Size mm | 6.7 x 75 |
| Length mm | 75 |
| Pack Type | Box |
| Material | Carbon Steel |
| Pack Quantity Unit | Pieces |
| Description | Designed as an alternative to the traditional coach screw mainly used for timber to timber applications. Wafer head for improved clamping and a low profile finish. Coated with a patented multi-layer corrosion resistant plating to withstand 1,000 hours salt spray test, this screw is ideal for external applications. |
| Recess Type | TX Drive |
| Head Type | Wafer |
| Lubrication | Wax |
| Finish | Exterior (Green Organic) |
| Thread Dia. mm | 6.7 |
| Thread Length mm | 52 |
| CE Standard Web | BS EN 14592:2008 |
| Pack Quantity | 50 |
| Driver Bit Size | TX30 |
| SKU Barcode | 5056110832647 |
| Corrosion Rating | 3 - Urban & industrial areas with a low salt atmosphere |
| Included Items | TX30 38mm Power Bit (Qty 1) |
| Carton Qty Packs | 35 |
| Head Dia. mm | 16.08 |
| Carton Qty pcs | 1750 |
| Inner Thread Dia. mm | 4.4 |
| Fixed Washer Dia. mm | 16 |
| Pack Dimensions L x W x H mm | 95 x 90 x 60 |
| Pack Weight kg | 0.698 |
| Application | Framing, Landscaping, Decking, Fencing, Stairs, Roofing, Gazebos, Pergolas, Sleepers |
| Thread Coverage | Partially Threaded |
