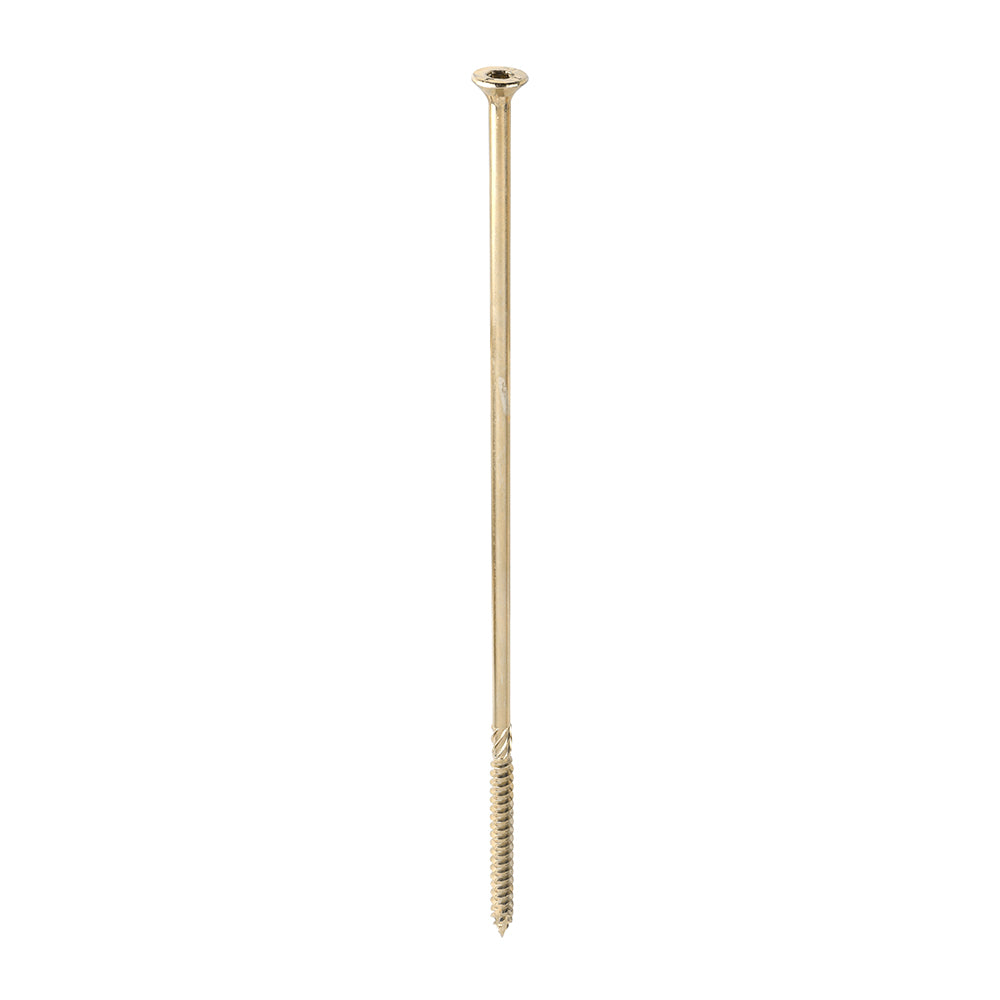

TIMCO C2 Clamp-Fix Multi-Purpose Premium Countersunk Gold Woodscrews - 8.0 x 300
A premium multi-material screw featuring the award winning C2 twin-cut technology. The dual angle partial thread and high torque TX drive ensures maximum clamping strength on every fixing. Designed to prevent the timber from ‘jacking’ apart when fastening timber to timber. Ideal for applications such as timber studwork, panelling, roof and decking framework.
Precision TX drive recess to prevent 'cam-out', giving a precise and positive drive control on every screw
Ribs under head for improved countersinking and to give a smooth and flush finish, also prevents splitting and material damage
Coated with a high-molecular polymer lubricant that reduces the insertion torque by up to 52% and increases rust protection up to 20 times longer than a standard zinc plating
Dual angle thread gives an ultimate performance and an exceptionally high pull-out resistance
Patented twin cut technology for rapid "pick-up" and reduces timber splitting
Partially threaded from 40mm
Point Type | Twin-Cut |
Gauge | 16 |
Length mm | 300 |
Size imp. | 16 x 12 |
Material | Carbon Steel |
Product Code | 80300C2C |
Description | A premium multi-material screw featuring the award winning C2 twin-cut technology. The dual angle partial thread and high torque TX drive ensures maximum clamping strength on every fixing. Designed to prevent the timber from ‘jacking’ apart when fastening timber to timber. Ideal for applications such as timber studwork, panelling, roof and decking framework. |
Recess Type | TX Drive |
Head Type | Double Countersunk |
Lubrication | Wax |
Thread Dia. mm | 8 |
Pack Quantity | 25 |
Driver Bit Size | TX40 |
Carton Qty Packs | 9 |
Length inch | 12 |
Pack Type | Box |
SKU Barcode | 5056110825007 |
Thread Type | 40 ° Single |
Pack Quantity Unit | Pieces |
Thread Length mm | 80 |
Size mm | 8.0 x 300 |
Carton Qty pcs | 225 |
Finish | Zinc & Yellow |
Substrates | Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal |
Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
CE Standard Web | BS EN 14592:2008 |
Shank Type | Helix |
Pack Dimensions L x W x H mm | 320 x 96 x 62 |
Pack Weight kg | 1.7 |
Max Clamping Fixture Thickness mm | 220 |
Thread Coverage | Partially Threaded |
