Designed as an alternative to the traditional coach screw mainly used for timber to timber applications. Wafer head for improved clamping and a low profile finish. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak.
Timber Frame Screw WAFER A2 SS

Timber Frame Screw WAFER A2 SS - 8.0 x 80 (Tube 20)

SKU: 80INDEXWSST
£20.80 inc. VAT
£24.97 Sale £20.80 inc. VAT
Description

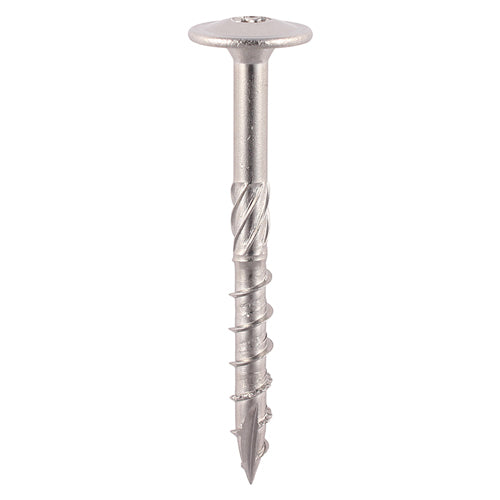

TIMCO Wafer Head A2 Stainless Steel Timber Screws - 8.0 x 80

Designed as an alternative to the traditional coach screw mainly used for timber to timber applications. Wafer head for improved clamping and a low profile finish. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak.

Wafer head countersunk and TX40 recess

Stainless Steel offers superior corrosion resistance, perfect for highly corrosive environments

Helix shank for removing debris and to improve clamping

Single slash point to reduce torque and the risk of timber splitting at low edge distance

25 ° sharp point and single lead for a fast start and improved thread acceptance

Description Designed as an alternative to the traditional coach screw mainly used for timber to timber applications. Wafer head for improved clamping and a low profile finish. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak.
Pack Quantity 20
Size mm 8.0 x 80
Material Austenitic Stainless Steel (A2-304)
Thread Type Serrated
Product Code 80INDEXWSST
Driver Bit Size TX40
Shank Type Helix
Pack Type Tube
Pack Quantity Unit Pieces
Corrosion Rating 4 - Urban & industrial areas with a moderate salt atmosphere
Included Items TX40 S2 Bit (Qty 1)
Length mm 80
Thread Length mm 40
Point Type 25 ° Sharp with Single Slash
Head Type Wafer
SKU Barcode 5056110836270
Substrates Hardwood, Softwood, Corrosive Wood (e.g. Oak, Cedar)
Colour Silver
Recess Type TX Drive
Thread Dia. mm 8
CE Standard Web BS EN 14592:2008
Head Dia. mm 20.84
Inner Thread Dia. mm 5.6
Fixed Washer Dia. mm 21
Carton Qty pcs 800
Carton Qty Packs 40
Pack Weight kg 0.5
Pack Dimensions L x W x H mm 58 x 58 x 138
Thread Coverage Partially Threaded
