The straight pattern hook and band hinges are for hanging the door or gate in front of the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic and agricultural applications. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to p

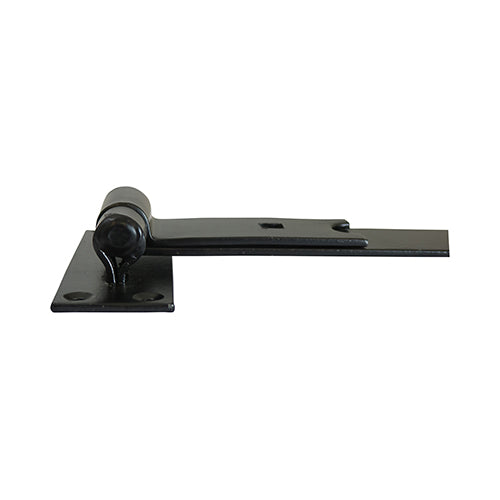

Straight Band Hook Plate Black

Straight Band Hook Plate Black - 250mm (Plain Bag 2)

SKU: HBS250B
£10.97 inc. VAT
£13.39 Sale £10.97 inc. VAT
Description

TIMCO Straight Band & Hook On Plates Hinges Black - 250mm

The straight pattern hook and band hinges are for hanging the door or gate in front of the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic and agricultural applications. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to p

Pack Quantity 2
Product Code HBS250B
Pack Type Plain Bag
Description The straight pattern hook and band hinges are for hanging the door or gate in front of the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic and agricultural applications. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to p
SKU Barcode 5055893360187
Pack Quantity Unit Pieces
Hook Plate Size L x W mm 115 x 40
No. of Bolt Holes 2
Band Length mm 250
Band Width mm 40
Band Thickness mm 4.8
Band Length inch 10
To Suit Gate Width mm 500 - 750
No. of Screw Holes 12
Carriage Bolt Size mm M10 x 100
Material Carbon Steel
Corrosion Rating 2 - Occasionally damp/wet, rural and sheltered areas
Finish Epoxy Black
Pin Dia. inch
Pin Dia. mm 12
No. of Carriage Bolts 2
Type Straight
To Fit Carriage Bolt Dia. mm M10
CSK Screw Size mm 6.0 x 40
No. of CSK Screws 12
Carton Qty pcs 10
Carton Qty Packs 5 Pairs
Rec Screw Dia. mm 6
Rec Screw Gauge imp. 12
Washer Size mm M10
Nut Type Hex Full
No. of Nuts 2
Nut Size mm M10
Washer Type Form A
No. of Washers 2
Included Items M10 x 100mm Carriage Bolts (Qty 2) ?M10 Hex Full Nuts (Qty 2) ?M10 Form A Washers (Qty 2) ?6.0 x 40mm Countersunk Screws (Qty 12)
Pack Dimensions L x W x H mm 115 x 30 x 406
Pack Weight kg 1.5
