The straight pattern hook and band hinges are for hanging the door or gate in front of the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic and agricultural applications. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to p

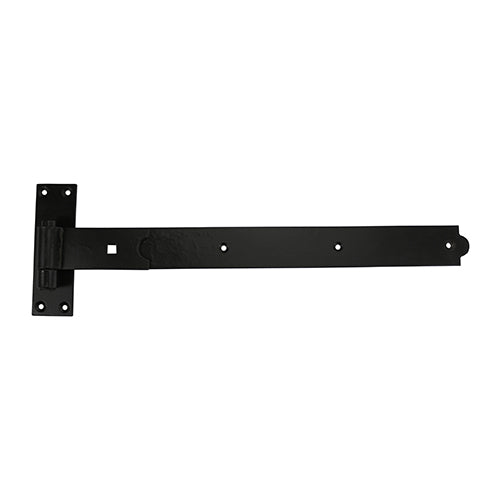

Straight Band Hook Plate Black

Straight Band Hook Plate Black - 400mm (Plain Bag 2)

SKU: HBS400B
£13.69 inc. VAT
£16.47 Sale £13.69 inc. VAT
Description

TIMCO Straight Band & Hook On Plates Hinges Black - 400mm

The straight pattern hook and band hinges are for hanging the door or gate in front of the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic and agricultural applications. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to p

Pack Type Plain Bag
Description The straight pattern hook and band hinges are for hanging the door or gate in front of the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic and agricultural applications. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to p
Product Code HBS400B
Pack Quantity 2
SKU Barcode 5055893360217
Pack Quantity Unit Pieces
Hook Plate Size L x W mm 115 x 40
No. of Bolt Holes 2
Band Length mm 400
Band Length inch 16
Material Carbon Steel
Band Thickness mm 4.8
To Suit Gate Width mm 800 - 1200
No. of Screw Holes 14
Carriage Bolt Size mm M10 x 100
Band Width mm 40
Corrosion Rating 2 - Occasionally damp/wet, rural and sheltered areas
Finish Epoxy Black
Pin Dia. inch
Pin Dia. mm 12
No. of Carriage Bolts 2
No. of CSK Screws 14
To Fit Carriage Bolt Dia. mm M10
Type Straight
CSK Screw Size mm 6.0 x 40
Carton Qty Packs 5 Pairs
Carton Qty pcs 10
Rec Screw Dia. mm 6
Rec Screw Gauge imp. 12
Nut Type Hex Full
Washer Size mm M10
No. of Nuts 2
Nut Size mm M10
Washer Type Form A
No. of Washers 2
Included Items M10 x 100mm Carriage Bolts (Qty 2) ?M10 Hex Full Nuts (Qty 2) ?M10 Form A Washers (Qty 2) ?6.0 x 40mm Countersunk Screws (Qty 14)
Pack Weight kg 1.93
Pack Dimensions L x W x H mm 152 x 30 x 457
