The straight pattern hook and band hinges are for hanging the door or gate in front of the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic and agricultural applications. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to p
Straight Band Hook Plate Black

Straight Band Hook Plate Black - 500mm (Plain Bag 2)

SKU: HBS500B
£19.34 inc. VAT
£23.24 Sale £19.34 inc. VAT
Description

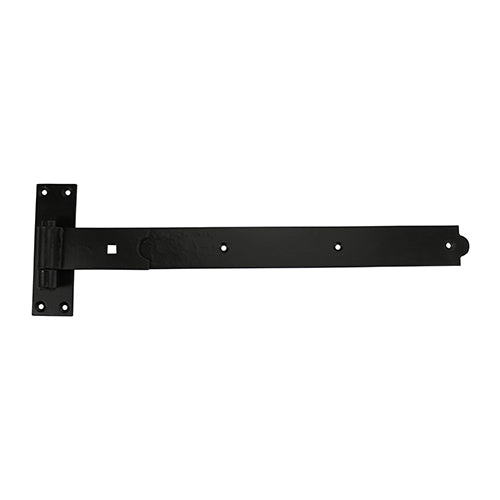

TIMCO Straight Band & Hook On Plates Hinges Black - 500mm

The straight pattern hook and band hinges are for hanging the door or gate in front of the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic and agricultural applications. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to p

Pack Type Plain Bag
Product Code HBS500B
Pack Quantity 2
Description The straight pattern hook and band hinges are for hanging the door or gate in front of the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic and agricultural applications. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to p
SKU Barcode 5055893360231
Pack Quantity Unit Pieces
Material Carbon Steel
Band Width mm 50
Corrosion Rating 2 - Occasionally damp/wet, rural and sheltered areas
Carriage Bolt Size mm M10 x 100
Finish Epoxy Black
To Suit Gate Width mm 1000 - 1500
No. of Screw Holes 14
Band Length inch 20
No. of Bolt Holes 2
Band Thickness mm 4.8
Hook Plate Size L x W mm 160 x 50
Band Length mm 500
Pin Dia. inch
Pin Dia. mm 16
No. of Carriage Bolts 2
No. of CSK Screws 14
To Fit Carriage Bolt Dia. mm M10
CSK Screw Size mm 6.0 x 40
Carton Qty pcs 10
Type Straight
Carton Qty Packs 5 Pairs
Rec Screw Gauge imp. 12
Rec Screw Dia. mm 6
Washer Size mm M10
Nut Size mm M10
No. of Washers 2
Nut Type Hex Full
No. of Nuts 2
Washer Type Form A
Included Items M10 x 100mm Carriage Bolts (Qty 2) ?M10 Hex Full Nuts (Qty 2) ?M10 Form A Washers (Qty 2) ?6.0 x 40mm Countersunk Screws (Qty 14)
Pack Dimensions L x W x H mm 152 x 30 x 609
Pack Weight kg 3.08
