The straight pattern hook and band hinges are for hanging the door or gate in front of the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic and agricultural applications. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to p
Straight Band Hook Plate HDG

Straight Band Hook Plate HDG - 600mm (Plain Bag 2)

SKU: HBS600G
£26.22 inc. VAT
£31.64 Sale £26.22 inc. VAT
Description

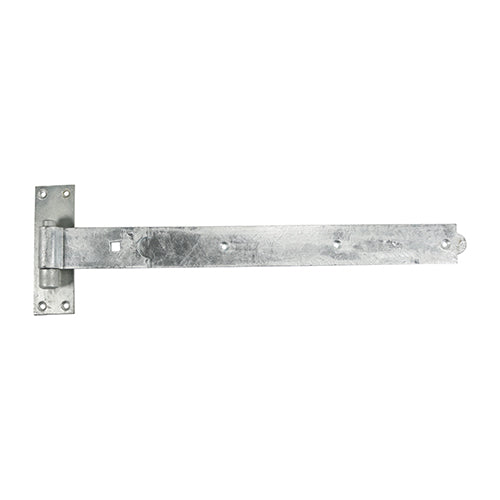

TIMCO Straight Band & Hook On Plates Hinges Hot Dipped Galvanised - 600mm

The straight pattern hook and band hinges are for hanging the door or gate in front of the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic and agricultural applications. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to p

Pack Quantity 2
Description The straight pattern hook and band hinges are for hanging the door or gate in front of the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic and agricultural applications. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to p
Product Code HBS600G
Pack Type Plain Bag
SKU Barcode 5055893360156
Pack Quantity Unit Pieces
Material Carbon Steel
To Suit Gate Width mm 1200 - 1800
Corrosion Rating 4 - Urban & industrial areas with a moderate salt atmosphere
Carriage Bolt Size mm M10 x 100
Finish Hot Dipped Galvanised
Band Thickness mm 5.4
No. of Screw Holes 14
No. of Bolt Holes 2
Band Width mm 50
Band Length inch 24
Hook Plate Size L x W mm 160 x 50
Band Length mm 600
Pin Dia. inch
Pin Dia. mm 16
Type Straight
CSK Screw Size mm 6.0 x 40
To Fit Carriage Bolt Dia. mm M10
No. of Carriage Bolts 2
No. of CSK Screws 14
Carton Qty pcs 10
Carton Qty Packs 5 Pairs
Rec Screw Gauge imp. 12
Rec Screw Dia. mm 6
No. of Nuts 2
Washer Type Form A
No. of Washers 2
Nut Type Hex Full
Washer Size mm M10
Nut Size mm M10
Included Items M10 x 100mm Carriage Bolts (Qty 2) ?M10 Hex Full Nuts (Qty 2) ?M10 Form A Washers (Qty 2) ?6.0 x 40mm Countersunk Screws (Qty 14)
Pack Weight kg 4.04
Pack Dimensions L x W x H mm 178 x 30 x 610
