The straight pattern hook and band hinges are for hanging the door or gate in front of the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic and agricultural applications. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to p
Straight Band Hook Plate HDG

Straight Band Hook Plate HDG - 750mm (Plain Bag 2)

SKU: HBS750G
£32.35 inc. VAT
£38.91 Sale £32.35 inc. VAT
Description

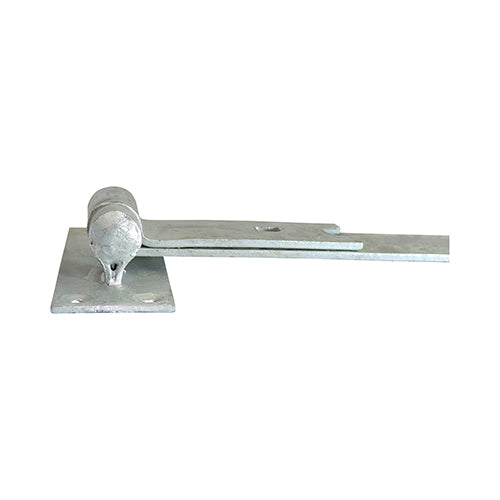

TIMCO Straight Band & Hook On Plates Hinges Hot Dipped Galvanised - 750mm

The straight pattern hook and band hinges are for hanging the door or gate in front of the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic and agricultural applications. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to p

Pack Quantity 2
Description The straight pattern hook and band hinges are for hanging the door or gate in front of the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic and agricultural applications. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to p
Product Code HBS750G
Pack Type Plain Bag
SKU Barcode 5055893360163
Pack Quantity Unit Pieces
Band Thickness mm 5.4
Band Length inch 30
Hook Plate Size L x W mm 200 x 75
No. of Bolt Holes 2
Band Length mm 750
Band Width mm 50
Material Carbon Steel
Carriage Bolt Size mm M10 x 100
To Suit Gate Width mm 1500 - 2250
No. of Screw Holes 14
Corrosion Rating 4 - Urban & industrial areas with a moderate salt atmosphere
Finish Hot Dipped Galvanised
Pin Dia. inch
Pin Dia. mm 19
No. of Carriage Bolts 2
No. of CSK Screws 14
Type Straight
To Fit Carriage Bolt Dia. mm M10
CSK Screw Size mm 6.0 x 40
Carton Qty pcs 10
Carton Qty Packs 5 Pairs
Rec Screw Dia. mm 6
Rec Screw Gauge imp. 12
Nut Size mm M10
No. of Washers 2
Washer Size mm M10
Nut Type Hex Full
No. of Nuts 2
Washer Type Form A
Included Items M10 x 100mm Carriage Bolts (Qty 2) ?M10 Hex Full Nuts (Qty 2) ?M10 Form A Washers (Qty 2) ?6.0 x 40mm Countersunk Screws (Qty 14)
Pack Dimensions L x W x H mm 152 x 30 x 914
Pack Weight kg 5.66
