Straight Band Hook Plate Black

Straight Band Hook Plate Black - 900mm (Plain Bag 2)

SKU: HBS900B
£39.33 inc. VAT
£47.42 Sale £39.33 inc. VAT
Description

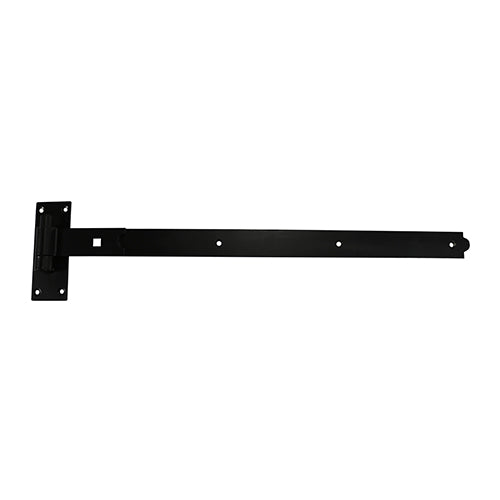

TIMCO Straight Band & Hook On Plates Hinges Black - 900mm

The straight pattern hook and band hinges are for hanging the door or gate in front of the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic and agricultural applications. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to p

Pack Type Plain Bag
Product Code HBS900B
Pack Quantity 2
Description The straight pattern hook and band hinges are for hanging the door or gate in front of the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic and agricultural applications. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to p
SKU Barcode 5055893360262
Pack Quantity Unit Pieces
Band Width mm 50
Band Thickness mm 5.4
Corrosion Rating 2 - Occasionally damp/wet, rural and sheltered areas
Carriage Bolt Size mm M10 x 100
Finish Epoxy Black
To Suit Gate Width mm 1800 - 2700
No. of Screw Holes 16
Material Carbon Steel
Hook Plate Size L x W mm 200 x 75
Band Length mm 900
Band Length inch 36
No. of Bolt Holes 2
Pin Dia. inch
Pin Dia. mm 19
No. of Carriage Bolts 2
No. of CSK Screws 16
Type Straight
To Fit Carriage Bolt Dia. mm M10
CSK Screw Size mm 6.0 x 40
Carton Qty pcs 10
Carton Qty Packs 5 Pairs
Rec Screw Dia. mm 6
Rec Screw Gauge imp. 12
Washer Size mm M10
Nut Size mm M10
Washer Type Form A
No. of Washers 2
Nut Type Hex Full
No. of Nuts 2
Included Items M10 x 100mm Carriage Bolts (Qty 2) ?M10 Hex Full Nuts (Qty 2) ?M10 Form A Washers (Qty 2) ?6.0 x 40mm Countersunk Screws (Qty 16)
Pack Dimensions L x W x H mm 152 x 30 x 1066
Pack Weight kg 6.48
