Heavy reversible hinges are ideal for flush mounted heavy gates, garage and stable doors in domestic, commercial and agricultural applications. The pins of the hinges mount into the hinge cups and prevent gates or doors from being lifted off. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings included.
Heavy ReversibleHinge Pair HDG

Heavy ReversibleHinge Pair HDG - 1200mm (Plain Bag 1)

SKU: HRH1200G
£84.51 inc. VAT
£101.66 Sale £84.51 inc. VAT
Description

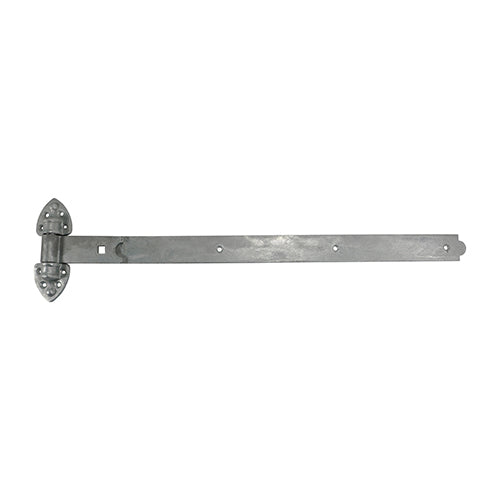

TIMCO Heavy Duty Reversible Hinges Hot Dipped Galvanised - 1200mm

Heavy reversible hinges are ideal for flush mounted heavy gates, garage and stable doors in domestic, commercial and agricultural applications. The pins of the hinges mount into the hinge cups and prevent gates or doors from being lifted off. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings included.

Pack Quantity 1
Description Heavy reversible hinges are ideal for flush mounted heavy gates, garage and stable doors in domestic, commercial and agricultural applications. The pins of the hinges mount into the hinge cups and prevent gates or doors from being lifted off. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings included.
Product Code HRH1200G
Pack Type Plain Bag
SKU Barcode 5055893360804
Pack Quantity Unit Each
Material Carbon Steel
Finish Hot Dipped Galvanised
Corrosion Rating 4 - Urban & industrial areas with a moderate salt atmosphere
Carriage Bolt Size mm M12 x 100
To Suit Gate Width mm 2400 - 3600
Band Thickness mm 5.6
No. of Bolt Holes 2
Band Width mm 50
Band Length inch 48
No. of Screw Holes 30
Band Length mm 1200
Pin Dia. inch
Pin Dia. mm 19
Type Reversible
To Fit Carriage Bolt Dia. mm M12
CSK Screw Size mm 6.0 x 40
No. of Carriage Bolts 2
No. of CSK Screws 26
Carton Qty pcs 4
Carton Qty Packs 2 Pairs
Rec Screw Dia. mm 6
Rec Screw Gauge imp. 12
No. of Washers 2
Washer Size mm M12
No. of Nuts 2
Nut Size mm M12
Washer Type Form A
Nut Type Hex Full
Included Items M12 x 100mm Carriage Bolts (Qty 2) ?M12 Hex Full Nuts (Qty 2) ?M12 Form A Washers (Qty 2) ?6.0 x 40mm Countersunk Screws (Qty 26)
Pack Weight kg 7.2
Pack Dimensions L x W x H mm 152 x 30 x 1371
