Heavy reversible hinges are ideal for flush mounted heavy gates, garage and stable doors in domestic, commercial and agricultural applications. The pins of the hinges mount into the hinge cups and prevent gates or doors from being lifted off. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings included.
Heavy ReversibleHinge Pair HDG

Heavy ReversibleHinge Pair HDG - 350mm (Plain Bag 1)

SKU: HRH350G
£17.37 inc. VAT
£21.04 Sale £17.37 inc. VAT
Description

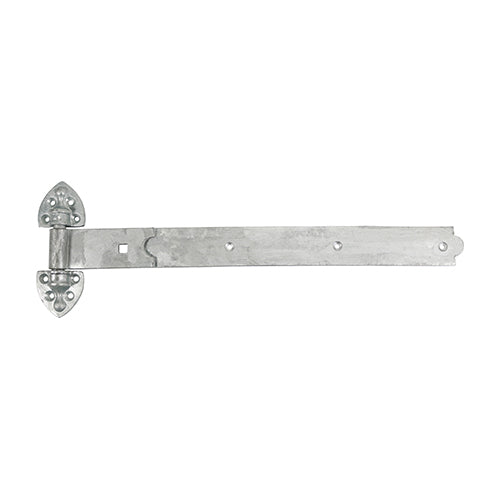

TIMCO Heavy Duty Reversible Hinges Hot Dipped Galvanised - 350mm

Heavy reversible hinges are ideal for flush mounted heavy gates, garage and stable doors in domestic, commercial and agricultural applications. The pins of the hinges mount into the hinge cups and prevent gates or doors from being lifted off. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings included.

Product Code HRH350G
Description Heavy reversible hinges are ideal for flush mounted heavy gates, garage and stable doors in domestic, commercial and agricultural applications. The pins of the hinges mount into the hinge cups and prevent gates or doors from being lifted off. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings included.
Pack Quantity 1
Pack Type Plain Bag
SKU Barcode 5055893360729
Pack Quantity Unit Each
Material Carbon Steel
Finish Hot Dipped Galvanised
Band Width mm 40
Band Thickness mm 4.8
Band Length inch 14
No. of Bolt Holes 2
Band Length mm 350
Corrosion Rating 4 - Urban & industrial areas with a moderate salt atmosphere
Carriage Bolt Size mm M10 x 100
To Suit Gate Width mm 700 - 1050
No. of Screw Holes 22
Pin Dia. inch
Pin Dia. mm 12
Type Reversible
No. of Carriage Bolts 2
No. of CSK Screws 20
To Fit Carriage Bolt Dia. mm M10
CSK Screw Size mm 6.0 x 40
Carton Qty pcs 10
Carton Qty Packs 5 Pairs
Rec Screw Dia. mm 6
Rec Screw Gauge imp. 12
Nut Size mm M10
No. of Washers 2
Washer Size mm M10
Nut Type Hex Full
No. of Nuts 2
Washer Type Form A
Included Items M10 x 100mm Carriage Bolts (Qty 2) ?M10 Hex Full Nuts (Qty 2) ?M10 Form A Washers (Qty 2) ?6.0 x 40mm Countersunk Screws (Qty 20)
Pack Dimensions L x W x H mm 160 x 30 x 395
Pack Weight kg 2.03
