Heavy reversible hinges are ideal for flush mounted heavy gates, garage and stable doors in domestic, commercial and agricultural applications. The pins of the hinges mount into the hinge cups and prevent gates or doors from being lifted off. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings included.
Heavy ReversibleHinge Pair BLK

Heavy ReversibleHinge Pair BLK - 450mm (Plain Bag 1)

SKU: HRH450B
£23.80 inc. VAT
£28.76 Sale £23.80 inc. VAT
Description

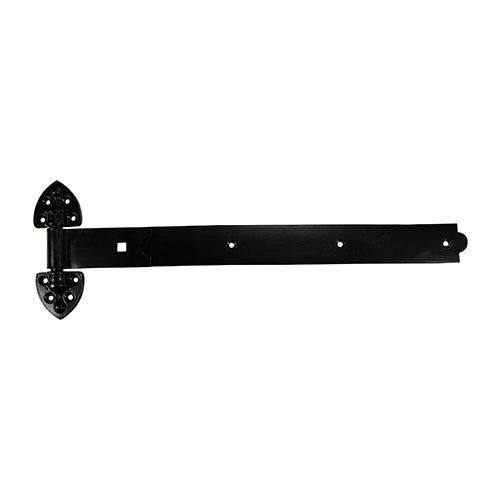

TIMCO Heavy Duty Reversible Hinges Black - 450mm

Heavy reversible hinges are ideal for flush mounted heavy gates, garage and stable doors in domestic, commercial and agricultural applications. The pins of the hinges mount into the hinge cups and prevent gates or doors from being lifted off. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings included.

Pack Quantity 1
Pack Type Plain Bag
Description Heavy reversible hinges are ideal for flush mounted heavy gates, garage and stable doors in domestic, commercial and agricultural applications. The pins of the hinges mount into the hinge cups and prevent gates or doors from being lifted off. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings included.
Product Code HRH450B
SKU Barcode 5055893360637
Pack Quantity Unit Each
Finish Epoxy Black
Band Width mm 50
Band Thickness mm 4.8
Band Length inch 18
No. of Screw Holes 26
No. of Bolt Holes 2
To Suit Gate Width mm 900 - 1350
Band Length mm 450
Corrosion Rating 2 - Occasionally damp/wet, rural and sheltered areas
Material Carbon Steel
Carriage Bolt Size mm M10 x 100
Pin Dia. inch
Pin Dia. mm 16
Type Reversible
To Fit Carriage Bolt Dia. mm M10
CSK Screw Size mm 6.0 x 40
No. of Carriage Bolts 2
No. of CSK Screws 22
Carton Qty pcs 10
Carton Qty Packs 5 Pairs
Rec Screw Dia. mm 6
Rec Screw Gauge imp. 12
No. of Nuts 2
Nut Size mm M10
Washer Type Form A
No. of Washers 2
Washer Size mm M10
Nut Type Hex Full
Included Items M10 x 100mm Carriage Bolts (Qty 2) ?M10 Hex Full Nuts (Qty 2) ?M10 Form A Washers (Qty 2) ?6.0 x 40mm Countersunk Screws (Qty 22)
Pack Weight kg 2.97
Pack Dimensions L x W x H mm 160 x 30 x 590
